Monocrystalline Silicon Ingots

Czochralski (CZ) or float zone (FZ) process. We supply the silicon rods in various lengths and diameters: 50.8 mm to 300 mm.

We will be happy to advise you on the selection of the right specifications for your application.
Please call us on +49-(0)8191-478747 or contact us by E-Mail.

We can offer you the following ingots

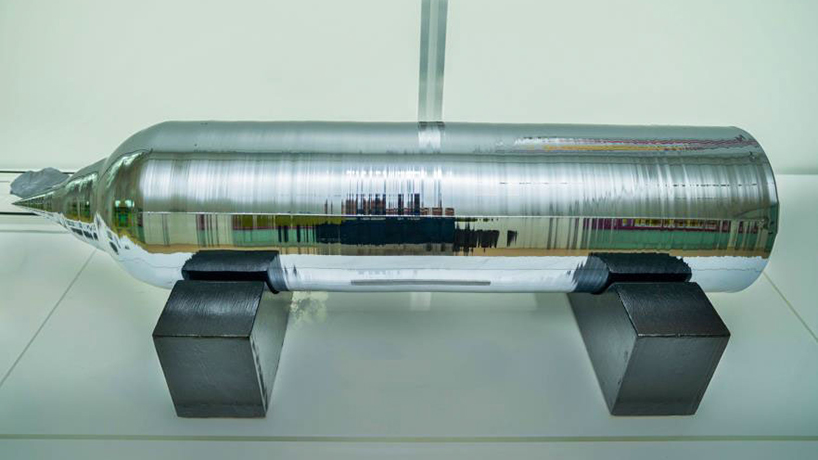

Monocrystalline silicon rods (ingots)

Silicon rods, also known as ingots, are cylindrical forms of high-purity silicon. They are produced using the zone melting process, whereby polycrystalline silicon is converted into a monocrystalline state. These rods serve as the starting material for the production of silicon wafers. The purity of the silicon in the ingots significantly influences the performance and quality of the resulting semiconductor products.

Typical ingot specifications:

Diameter:
25,4mm
50,8mm
76,2mm
100mm
125mm
150mm
200mm
300mm

Growth:
CZ (Czochralski)
FZ (Floating Zone)

Length:

Type/Dopant:
P/Bor
N/Phos
N/Sb
N/As
Undoped
Intrinsic

Orientation:
<100>
<111>
<110>

Resistivity:
0,001 – 50,000ohmcm

Flat/Notch:
SEMI Std.
No Flat
2 Flat
2 Flats
Jeida Flat
Notch
